- Place of Origin: Guangdong, China (Mainland)
- Brand Name: winpossee

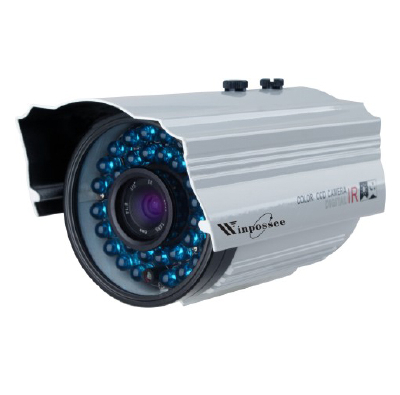

- Model Number: WP-806H6
(1) high brightness: the output of a single led array is about 1w~20w, hundreds of times more than that of the conventional single
LED, 5 to 15 mw. It has a very far target range.
(2) high efficiency: the lightning conversion efficiency of ordinary infrared LEDs is about 10%, and the LED array is as high as 25%.
(3) small volume: LED array is highly integrated chip, smaller than the ordinary one.
(4) long lifetime: the life of LED array is 50,000 hours (effective life is 10,000 hours), 9 times longer than the common LED (effective
life is 1,200 hours).
(5) homogeneous light: LED array can produce (180°shape) shiny surface. It can solve '' the flashlight effect'' of the common LEDs.
| Normal Analog camera | |||||||
| Model | WP-806H6 | WP-806H7 | WP-806C6-IR | WP-806C7-IR | WP-806C8-IR | WP-806C9-IR | WP-806C12-IR |
| Solution | NVP2041 639 | Effio E 4140 811 | BF3005 FH8510 | PC3089 | MT139 FH8510 | PC1099 | IMX238 FH8520 |
| Image Sensor | 1/3" SONY Super HAD CCD II | 1/4'' CMOS | 1/3'' Pixel plus CMOS | 1/4'' Aptina CMOS | 1/3'' Pixel plus CMOS | 1/3'' Sony CMOS | |
| Resolution | 600TVL | 700TVL | 600TVL | 700TVL | 800TVL | 900TVL | 1200TVL |
| IR Cut | With IR-CUT | ||||||
| Signal System | PAL | PAL | PAL/NTSC | ||||
| Effective Pixels | 752H*582V | 976H*582V | 654H*583V | 756H*504V | 728H*560V | 976H*496V | 1305H*1049V |
| Illumination (F1.2) | 0.01/0Lux(IR On) | 0.005/0Lux (IR On) | |||||
| Lens | 3.6 mm/4mm/6mm/8mm optional / F1.2 | ||||||
| S/N Ratio | 55dB | 55dB | 45dB | 47dB | 45dB | 46dB | 48dB |
| Dynamic Range | DWDR | DWDR | 65dB | 62.9dB | 74.8dB | 63.5dB | 80dB |
| E-Shutter | 1/50~1/100,000S | 1/50~1/100,000S | 1/50~1/100,000S(PAL)/ 1/60~1/100,000S(NTSC) | ||||
| White Balance | Auto/Manual（with OSD） | Auto Tracking White Balance | |||||
| Gain Control | Auto/Manual（with OSD） | Auto | |||||
| Exposure | Auto/Manual（with OSD） | Auto | |||||
| Noise Reduction | 2D-NR | 2D-NR | Adaptive Image Noise reduction | No | Adaptive Image Noise reduction | No | |
| Gamma | 0.45 | 0.45 | |||||
| Day/Night | Auto/Manual | IR synchronous | |||||
| Infrared Wavelength | 850MM | ||||||
| Video Output | 1.0vp-p.75Ω(BNC) | ||||||
| Waterproof | IP66 | ||||||
| Power Supply | DC 12V± 20% | ||||||
| Working Temperature | -10℃～ 70℃ | ||||||
