- Place of Origin: Guangdong, China (Mainland)
- Brand Name: winpossee
- Model Number: WP-IH300(wall mounted)

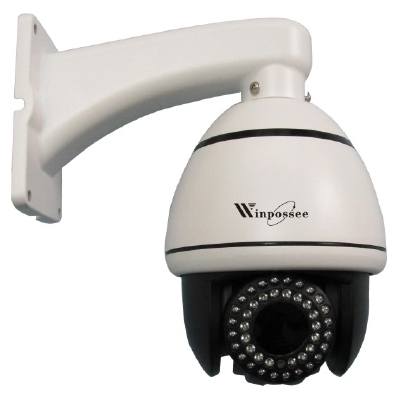

1)7” intelligent IR high-speed dome, 30X ,700TVL zoom camera,full metal structure, built-in decoder and pan-tilt
2)10pcs array LEDs (the third generation), the infrared distance is 120m, 360° rotate, 90° vertical
3)200° / seconds; 226 preset points, 8 visitatorial groups
4)can adjust the camera parameters and functions conveniently. 256 address codes.
5) Proportional zoom function, rotation speed can be adjusted automatically according to zoom multiples
6) Support park action, presets/pattern/patrol/pan scan can invoke automatically after a defined time of inactivity (contain the idling condition after the power supply
Model | WP-IH300(wall mounted) |
Function | |
IR distance | 100-120m |
Pan Range | 360°endless |
Pan Speed | 0.6-220°/s |
Tilt Range | 0-90°,(auto flip) |
Tilt Speed | 0.8-75°/s |
Manual speed | High, medium, low (adjustable) |
Proportional Zoom | Support |
Number of preset | 220 |
Patrol scan | 8 |
Pattern scan | 4 |
Scan between two presets | Support |
Park action | presets/pattern/patrol/scan between two presets/ auto |
Zone Scanning/Display | Support |
Input/output | |
Analog video output | 1Vp-p (75Ω/BNC) |
Control mode | RS485 |
Control protocol | PELCO-D、PELCO-P 、Hikvision、DAHUA |
Power supply | DC 12V/4A or AC24/3A |
Power consumption | 40W(with heater) |
Work tempature and humidity | -20℃-60℃,≤90%RH(frostless) |
Protective grade | TVS3000V lightning protection, surge protection and voltage, IP66 |
Package | |
Package size (mm) | 300x300x450mm |
weight(Kg) | 6.5kg |
